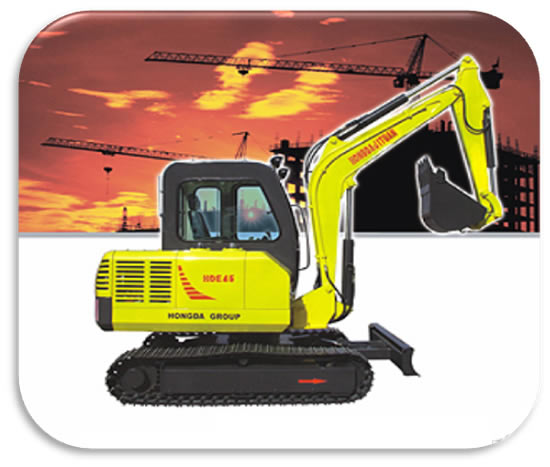

MINI ESCAVATOR

mini-excavator Sri Lanka

Uses:

HONGDA series of multi-functional small hydraulic excavators is widely used at all kinds of construction sites such as those of road construction, municipal works, pipe networks, landscape works and water conservancy projects. Equipped with working devices like breakers, the excavator has excellent performance that can meet your various needs in special working conditions and construction environments and smooth away all your worries.

Power System:

Equipped with the engineering diesel engine tailor-made for excavators, HONGDA series of small hydraulic excavators have stable performance, strong power and classic configuration. They are equipped with famous-brand diesel engines made in China or world-famous diesel engines imported with original packaging.

Hydraulic System:

Equipped with the world’s top-class hydraulic pump, main valve, traveling motor and slewing motor, the hydraulic system shows good quality and stable performance, which enables the whole system to run smoothly. The hydraulic system adopts a three-pump and three-loop design, equipped with the constant power variable control and the flow limiter control through a third pump (gear pump), which gives full play to the engine power.

Driver’s Cab:

The all-closed and low-noise cab is eye-pleasing and elegant with roominess and brightness. The front top window can be opened for better vision and ventilation. The adjustable chair can meet various using demands. The cab is equipped with an air-conditioner which greatly improves the operating environment, lessens the driver’s tiredness and heightens the work efficiency.

HONGDA’s Home-made Parts:

Equipped with HONGDA’s home-made parts, the machine has a compact overall structure and is easy to move from place to place. It can be used together with deflecting devices and is very suitable for work in narrow places. It can also be used together with various auxiliary devices to accomplish various tasks such as digging, smashing, dredging, trenching and bulldozing.

Specifications:





Total Weight (kg) -1720
Bucket Capacity (m3) -0.05



Engine specifications:

Engine model -YANMAR 3TNV76
Engine Power (kw) -15.3
Fuel Tank Capacity (L) -20



Hydraulic system specifications:

Working Pressure (Mpa) -20
Rated Flow (L/min) -2×22
Capacity of Hydraulic Oil Tank (L) -26



Performance parameters:

Max Digging Ability (Bucket/Bucket Rod) (T) -12.7/8.5
Max Hauling Capacity (T) -1.7
Traveling Speed (km/h) -4.2/2.2
Slewing Speed (rpm) -11
Grade Ability (°) -30



Transportation parameters:

Total Length (mm) -3848
Total Width (mm) -1100
Total Height (mm) -2345
Min Slewing Radius (mm) -1279
Minimum Clearance Above Ground (mm) -188



Dozer Blade specifications:

Width × Height (mm) -1100×230



Operating range specifications:

Max Digging Radius (mm) -3645
Max Digging Depth (mm) -2175
Max Digging Height (mm) -3370
Max Discharging Height (m) -2225



mini-excavator Sri Lanka

Uses:

HONGDA series of multi-functional small hydraulic excavators is widely used at all kinds of construction sites such as those of road construction, municipal works, pipe networks, landscape works and water conservancy projects. Equipped with working devices like breakers, the excavator has excellent performance that can meet your various needs in special working conditions and construction environments and smooth away all your worries.

Power System:

Equipped with the engineering diesel engine tailor-made for excavators, HONGDA series of small hydraulic excavators have stable performance, strong power and classic configuration. They are equipped with famous-brand diesel engines made in China or world-famous diesel engines imported with original packaging.

Hydraulic System:

Equipped with the world’s top-class hydraulic pump, main valve, traveling motor and slewing motor, the hydraulic system shows good quality and stable performance, which enables the whole system to run smoothly. The hydraulic system adopts a three-pump and three-loop design, equipped with the constant power variable control and the flow limiter control through a third pump (gear pump), which gives full play to the engine power.

Driver’s Cab:

The all-closed and low-noise cab is eye-pleasing and elegant with roominess and brightness. The front top window can be opened for better vision and ventilation. The adjustable chair can meet various using demands. The cab is equipped with an air-conditioner which greatly improves the operating environment, lessens the driver’s tiredness and heightens the work efficiency.

HONGDA’s Home-made Parts:

Equipped with HONGDA’s home-made parts, the machine has a compact overall structure and is easy to move from place to place. It can be used together with deflecting devices and is very suitable for work in narrow places. It can also be used together with various auxiliary devices to accomplish various tasks such as digging, smashing, dredging, trenching and bulldozing.

Specifications:

Total Weight (kg) -2920
Bucket Capacity (m3) -0.11



Engine specifications:

Engine model -YANMAR 3TNV88
Engine Power (kw) -19.2
Fuel Tank Capacity (L) -36





Hydraulic system specifications:

Working Pressure (Mpa) -21
Rated Flow (L/min) -2×39.6+23+11
Capacity of Hydraulic Oil Tank (L) -54



Performance parameters:





Max Digging Ability (Bucket/Bucket Rod) (T) -18.2/12.5
Max Hauling Capacity (T) -2.6
Traveling Speed (km/h) -4.5/2.8
Slewing Speed (rpm) -10.8
Grade Ability (°) -30



Transportation parameters:





Total Length (mm) -4400
Total Width (mm) -1450
Total Height (mm) -2345
Min Slewing Radius (mm) -1370
Minimum Clearance Above Ground (mm) -254



Dozer Blade specifications:

Width × Height (mm) -1450×350



Operating range specifications:

Max Digging Radius (mm) -4450
Max Digging Depth (mm) -2590
Max Digging Height (mm) -4200
Max Discharging Height (m) -2855
